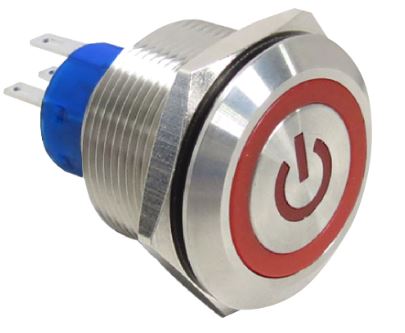

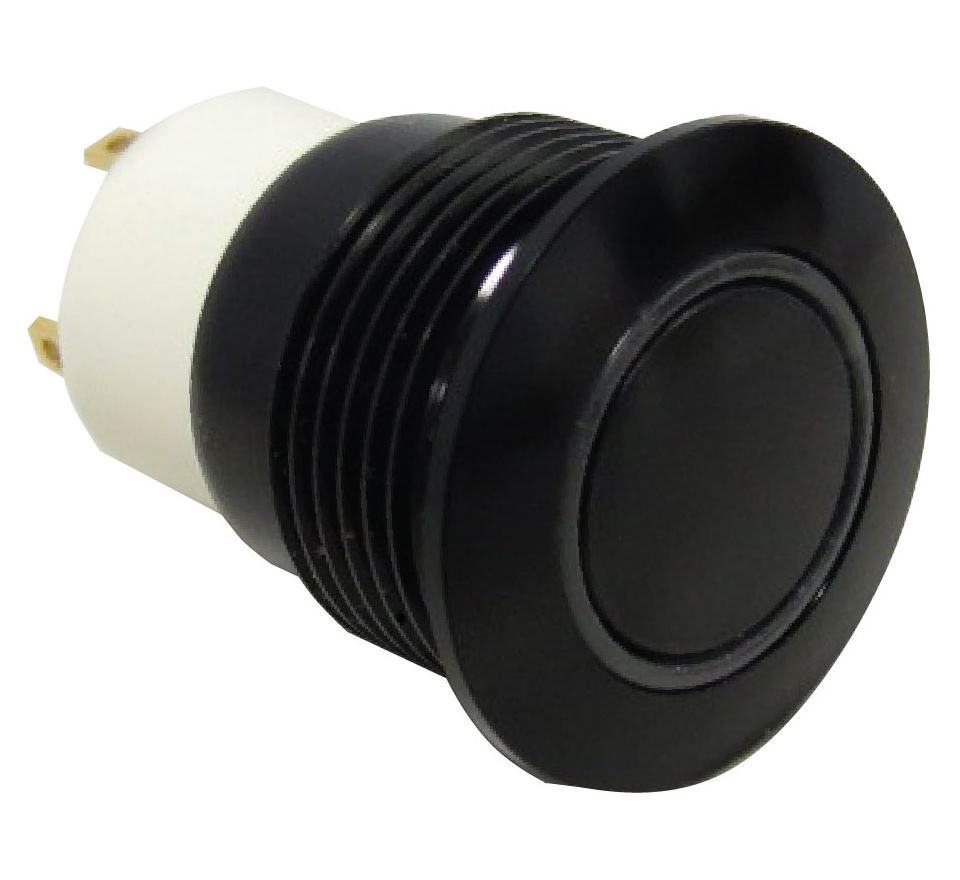

Rugged design with metal bushing and cap
Illuminated ring or indicator to improve panel visibility
IP67 Waterproof
Optional IK10 robustness
16, 19, 22, or 25 mm bushing diameter
Up to 26A at 250VAC
Large actuation area for easy operation
Customization upon request
Industrial control, ticket dispenser, casino gaming, access control, surveillance, pro-audio, communication, emergency stop, foot pedal, …, etc.
| Series | Features | Life Cycle | Rating | Contact Style | Download | Termination | |
|---|---|---|---|---|---|---|---|
|
Series TACP |
Capacitive switch 50 million cycles IP68 waterproof Illumination | 50 Million | 1A@5-24VDC | Momentary Lock |
TACP.pdf |
Cable |
|
Series TAZP |
Piezo switch 50 million cycles IP68 waterproof Illumination | 50 Million | 1A@24VDC | Momentary Pulse |
TAZP.pdf |
Cable |
|
Series MP16 |
16mm diameter Metal pushbutton Long-life IP67 waterproof Illumination | 1,000,000 | 2A@36VDC | Momentary |
MP16.pdf |
Solder Lug Cable |
|
Series MP16L |
16mm diameter Metal pushbutton IP67 waterproof Illumination | 100,000 | 2A@36VDC | Lock |
MP16L.pdf |
Solder lug Cable |
|
Series MP19 |
19mm diameter Metal pushbutton Long-life IP67, IK10 Illumination | 1,000,000 500,000 | 3A@250VAC | Momentary Lock |
MP19.pdf |
Solder Lug Cable |
|
Series MP22 |
22mm diameter Metal pushbutton Long-life IP67, IK10 Illumination | 1,000,000 500,000 | 3A@250VAC | Momentary Lock |
MP22.pdf |
Solder lug Cable |
|
Series MP25 |
25mm diameter Metal pushbutton Long-life IP67, IK08 Illumination | 1,000,000 500,000 | 3A@250VAC | Momentary Lock |
MP25.pdf |
Solder lug Cable |
|
Series MPT19 |
19mm diameter Long-life IP67 waterproof Illumination Thinner Thickness | 1,000,000 | 2A@36VDC | Momentary |
MPT19.pdf |
Solder Lug Cable |
|
Series MPT22 |
22mm diameter Long-life IP67 waterproof Illumination Thinner Thickness | 1,000,000 | 2A@36VDC | Momentary |
MPT22.pdf |
Solder Lug Cable |
|
Series MPT25 |
25mm diameter Long-life IP67 waterproof Illumination Thinner Thickness | 1,000,000 | 2A@36VDC | Momentary |
MPT25.pdf |
Solder Lug Cable |
|
Series KP22 |
22mm diameter Metal pushbutton Long-life IP65 waterproof Illumination | 1,000,000 500,000 | 3A@250VAC | Momentary Lock |
KP22.pdf |
Solder lug Cable |
|
Series MAW19 |
19mm diameter Metal pushbutton High current Long-life IP67, IK08 Illumination | 1,000,000 500,000 | 26A@250VAC | Momentary Lock |
MAW19.pdf |
Quick-connect |
|
Series MAW22 |
22mm diameter Metal pushbutton High current Long-life IP67, IK08 Illumination | 1,000,000 500,000 | 26A@250VAC | Momentary Lock |
MAW22.pdf |
Quick-connect |
|
Series MAW25 |
25mm diameter Metal pushbutton High current Long-life IP67, IK08 Illumination | 1,000,000 500,000 | 26A@250VAC | Momentary Lock |
MAW25.pdf |
Quick-connect |
|

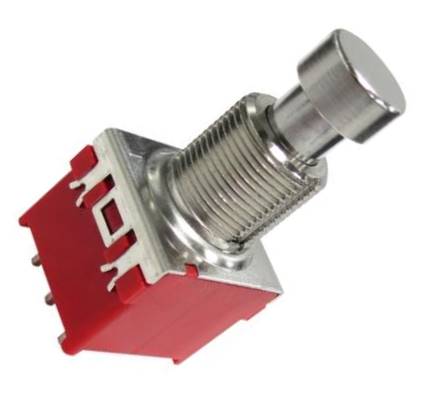

Series FAK |
Foot switch High force Robust mechanism | 30,000 | 1A@9VDC | Momentary Lock |
FAK.pdf |
Solder lug Thru-hole |
|
Series MPE |
Emergyency Switch Push-pull High operating force | 100,000 | 4A@24VDC | Push-pull |
MPE.pdf |
Solder lug |
