Pogo pin is a spring loaded pin used to establish electrical connection with printed circuit board or another pin. Pogo pin is connected when it's pressed, so it could isolate signal transmission when it's in free status. While it's connected, the spring force can be secured very tight.

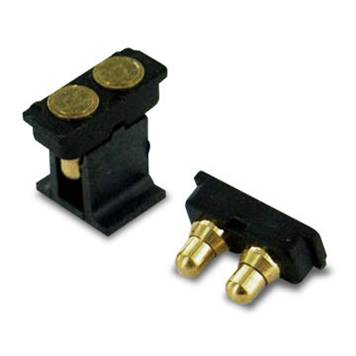

Multiple pogo-pin can be assembled with plastic housing to become a pogo-pin connector. The housing is customized to provide flexibility in terms of pitch, dimension, power rating, ..., etc.
APEX pogo-pin contains single pogo-pin, pogo-pin connector, and crown spring connector. Please contact us to recommend the product that fits with your application.
Laptop, wearable device, electric-vehicle, medical, industrial, barcode scanner, mini-printer, military, earphone, hearing aid, ..., etc.
Series | Features | Life Cycle | Electrical Rating | Contact Style | Download | Termination | |
---|---|---|---|---|---|---|---|
|
Series PG |
Miniature High current Water-proof Dynamic connection | 10,000 100,000 | 1-500 amp. | Single-pin Multiple-pin |
PG.pdf |
Vertical, horizontal SMD, Thru-hole, connector |
