Variety of mounting, illumination, linearity, force, actuator, travel and termination options
Optional rail design for long-life and excellent slide feel
Available for customization
Panel control that requires analog signal change via sliding. Popular for applications in audio, medical, industrial, or consumer market.
| Series | Features | Life Cycle | Force | Resistance | Download | Termination | |
|---|---|---|---|---|---|---|---|
|

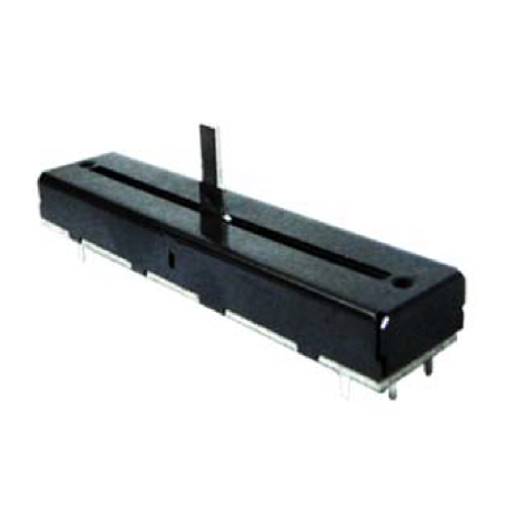

Series SVA |
Illumination on top of lever Anti-flux penetration Excellent slide feel | 15,000 | 30 ~ 250 gf | 5-500KΩ |
SVA.pdf |
Vertical Thru-hole, Snap-in |
|

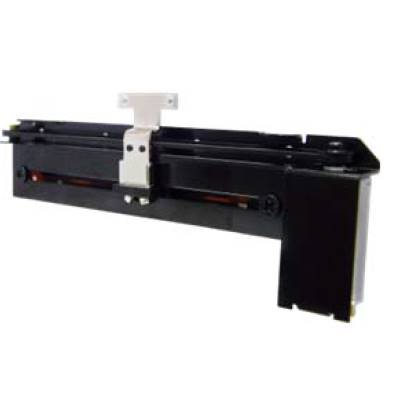

Series SVB |
15-100mm travel Dual output available Bottom seal Excellent slide feel | 15,000 | 10~80gf 30~250gf | 5-500KΩ |
SVB.pdf |
Vertical Thru-hole |
|

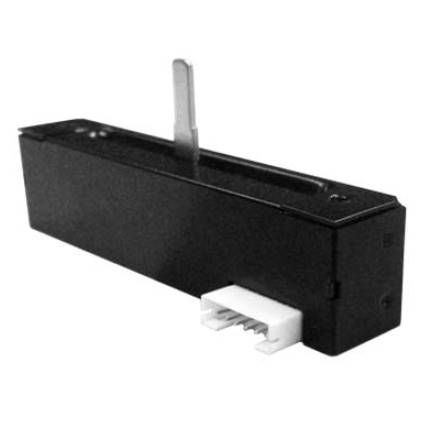

Series SVC |
Rail design for smooth slide feel Dual output available 1 million cycles Custom options available | 1,000,000 | 30gf max. | 5-500KΩ |
SVC.pdf |
Connector |
|

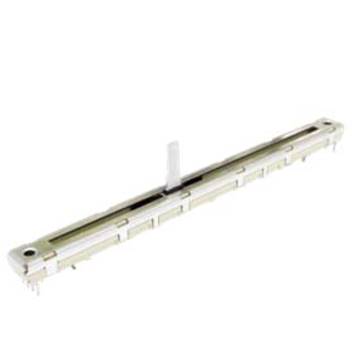

Series SVD |
45, 60, 100mm travel Rail design Long-life, precision | 100,000 | 60gf max. | 5-500KΩ |
SVD.pdf |
Vertical Thru-hole |
|

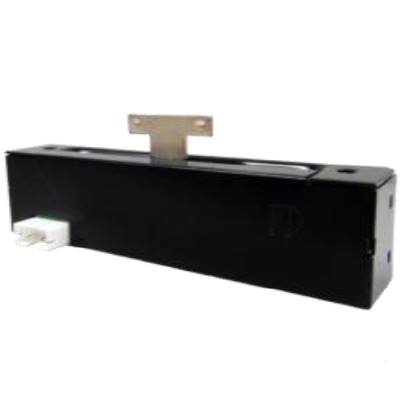

Series SVE |
45, 60, 100mm travel Low-profile Long-life, precision | 100,000 | 50gf max. | 5-500KΩ |
SVE.pdf |
Vertical Thru-hole |
|

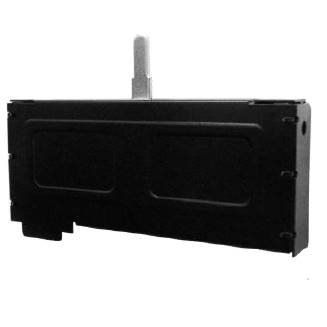

Series SVO |
Slim body thickness Low-cost Dual output available | 10,000 | 20 ~ 110 gf | 5K-500K |
SVO.pdf |
Vertical, Horizontal Thru-hole |
|

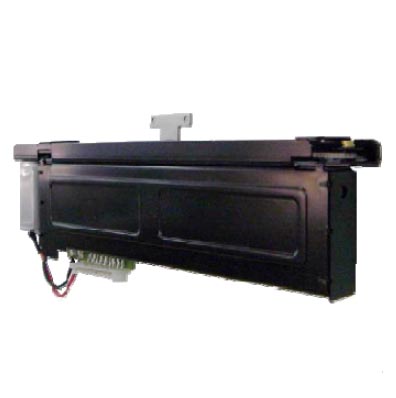

Series MSVA |
100mm travel Touch sensitive track Rail design Long-life, precision | 1,000,000 | 5VDC | Yes |
MSVA.pdf |
Connector |
|

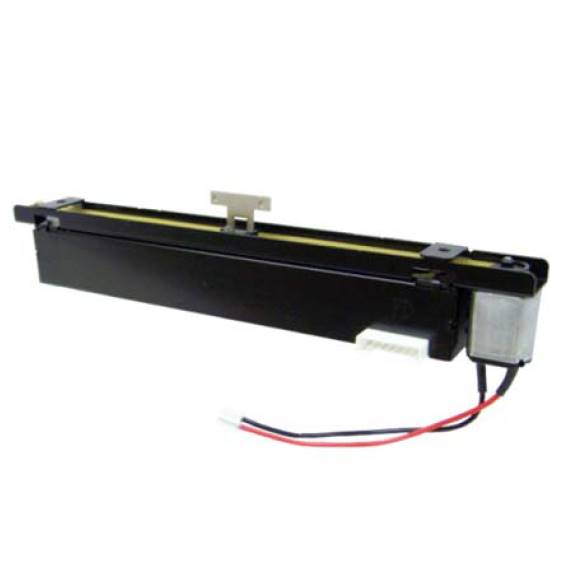

Series MSVB |
100mm travel Touch sensitive track Rail design Long-life, precision | 1,000,000 | 5VDC | Yes |
MSVB.pdf |
Connector |
|
Series MSVC |
60, 100mm travel Touch sensitive track Precision output | 50,000 | 5VDC | Yes |
MSVC.pdf |
Solder lug, Connector |
|
Series SHSA |
Hall effect sensor Very light force Long-life, precision | 4,000,000 | 5VDC | 45mm |
SHSA.pdf |
Connector |
|
Series SHSB |
Hall effect sensor Very light force Low-profile Long-life, precision | 5,000,000 | 5VDC | 45mm |
SHSB.pdf |
Connector |
